CVR · GHOSTRUNNER · OFF-ROAD UGVIN PRODUCTION

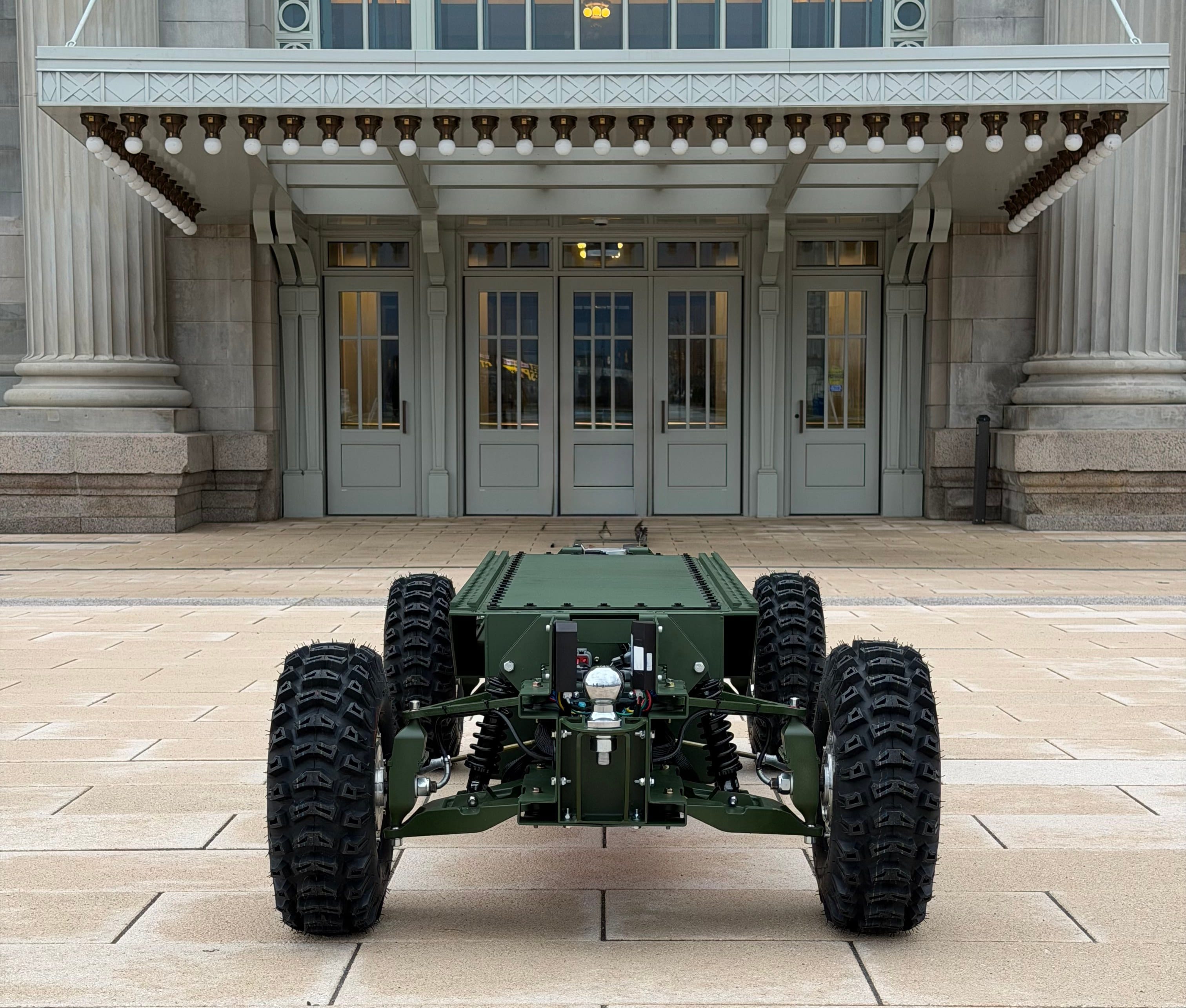

Ghostrunner — front view, building entrance
High-speed · Off-road · Field-ready

Ghostrunner

Ghostrunner is a high-speed, off-road robotic platform built for rugged field operations: distributed sensing, mobility, communications support, and field logistics. Engineered around the CVR vertically integrated hardware stack, Ghostrunner is built to operate where infrastructure cannot.

Payload
160 kg
Useful load
Max Tow
400 kg
Loaded ops
Top Speed
11 m/s
~25 mph
Range
160 km
Standby 72 hr
Size (L×W×H)
1.5 × 0.9 × 0.4 m
Curb 85 kg
01 · Mission Profiles

Built for the work that
has to be done.

Ghostrunner is a single rugged platform configured to the mission profile. Sensors, autonomy, communications, and payloads mount through a shared interface.

01· RECON
ISR & Reconnaissance

Forward sensing and reconnaissance with low-signature transit and modular sensor payloads.

02· RELAY
Comms / Mesh Relay

Forward communications node — distributed relay for teams operating beyond fixed infrastructure.

03· CASEVAC
CASEVAC Support

Configurable for casualty evacuation support and forward medical resupply in austere terrain.

04· LOGISTICS
Field Logistics

Resupply and distribution across off-road terrain — trail, brush, and rough ground.

05· SENSING
Distributed Sensing

Network of forward sensor nodes for perimeter, infrastructure, and remote-site monitoring.

06· MOBILITY
Off-road Mobility

High-speed traversal of mixed terrain. Independent suspension, oversize tires, real-world geometry.

02 · Specifications

Specifications.

Detailed mission-configurable specifications available under partnership review.

PLATFORM
ClassOff-road UGV
DriveIndependent, all-wheel
SteeringAckermann (opt. dual-mode)
Size (L×W×H)1.5 × 0.9 × 0.4 m
Curb Weight85 kg
MOBILITY
Top Speed11 m/s
Range160 km
Max Grade25°
Ground Clearance125 mm
Wheel Size15 in (380 mm) pneumatic
POWER & I/O
Battery7 kWh
Standby Runtime72 hr
Power OutConfigurable payload bus
MountsL-Track + M8 pattern
I/OCAN, MAVlink
ENV & COMPLIANCE
Payload / Tow160 kg / 400 kg
IngressIP65
Operating Temp−10 to +45 °C
ServiceabilityField-serviceable
Supply ChainBAA / NDAA · Detroit, USA
03 · Modules & Accessories

Configurable for the
mission profile.

Ghostrunner mounts the same chassis to a wide range of mission packages. Modules are integrated at build time or in the field by trained operators.

01· RANGE EXTENDER
Diesel Range Extender

2 kW tactical-grade range extender. Adds extended-duty runtime for off-grid or long-loiter missions.

02· AUTONOMY
Autonomy Package

CVR's onboard autonomy stack — mapping, obstacle avoidance, path planning, self-driven routes — on an NDAA-compliant sensor and compute pack.

03· MOBILITY
Portal Axles

Additional ground clearance and breakover angle for unimproved terrain — staging areas, brush, and rough ground.

04· STEERING
Four-Wheel Steering

Tighter turning circle and crab-steer for lateral translation in tight off-road cuts and confined staging.

05· SUSTAINMENT
Service Kits

Wear parts, spares, and tooling for operator-level upkeep in the field.

04 · Program Status

Program status.

PRODUCTIONHardware in productionACTIVE
DEPLOYMENTFederal purchase negotiationsACTIVE
SUPPLY CHAINCVR vertically integrated hardware stackINTEGRATING
AVAILABILITYGovernment partners · industrial partnersBY REQUEST
OTHER SYSTEMS
05 · CALL TO ACTION

Put Ghostrunner
in the field.

CVR builds full-stack robotic systems that become the foundation for America's robotics supply chain — full-stack robots, trusted electronics, modular sensors, control systems, power systems, and domestic manufacturing designed for government-first deployment and commercial-scale expansion.
